bassano horizontal contemporary designer radiator <BR> colour shown BROWN TEX MET
bassano horizontal contemporary designer radiator
colour shown BROWN TEX MET

modern contemporary designer rectangular tubed range of radiators
bottom connections only
load bearing wall required

  • contemporary horizontal designer radiators suitable for modern living areas
  • high output double radiators available
  • available in white (RAL 9016) in 2 days
  • available in a range of colours in 10 working days

BASSANO HORIZONTAL SINGLE
Size
tubes
Output
price
(ex VAT)
white
(RAL 9016)
stock code
Price
(ex VAT)
Apollo
Colours
heightwidthwattbtu
600   78420  8092760510.00bahs6h800    689.00
600 10242610523589640.00  bahs6h1000     864.00
600 11843012144142730.00  bahs6h1200     986.00
600 14243614574971860.00  bahs6h1400     1161.00
600  15844016185521990.00  bahs6h1600   1337.00
600  174444178060731110.00  bahs6h1800   1499.00

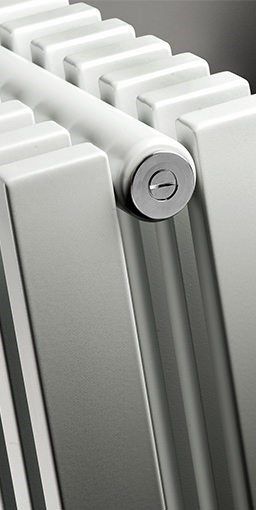

BASSANO HORIZONTAL DOUBLE
Size
tubes
Output
price
(ex VAT)
white
(RAL 9016)
stock code
Price
(ex VAT)
Apollo
Colours
heightwidthwattbtu
60010242617415940    1250.00bahd6h1000 1688.00
60011843020096855    1400.00bahd6h1200 1890.00
60014243624118226    1650.00bahd6h1400 2228.00
DIMENSIONS - BASSANO SINGLE
Size nominal:   Actual width = (No. tubes x 40mm) - 16mm
Back wall to front of rad
Back wall to pipe centres
Distance between tappings
      118mm
        54mm
(No. tubes x 40mm) - 80mm
DIMENSIONS - BASSANO DOUBLE
Size nominal:   Actual width = (No. tubes x 40mm) - 16mm
Back wall to front of rad
Back wall to pipe centres
Distance between tappings
                                                                                                             166mm
         103mm
   (No. tubes x 40mm) - 80mm
BASSANO RANGE INFORMATION
EN442 OUTPUTS ΔT50C
CORRECTION FACTOR TO ΔT60C = 1.2675
  EXAMPLE RAL STOCK CODE RAL7024_BAHS6H800
SEE ANTHRACITE STOCK RANGE ALSO   ALL PRICES SUBJECT TO VAT

  TECHNICAL SPEC

Steel Made in Belgium s days free delivery5 Year Guarantee
