ravenna plus stock

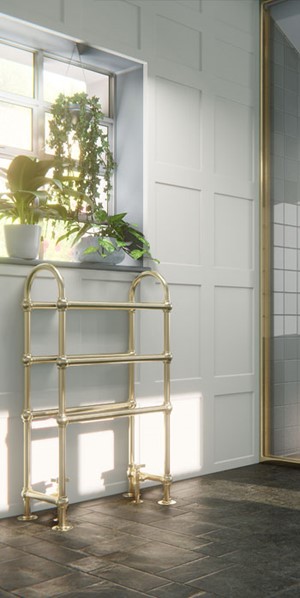

traditional towel warmer, handmade in chrome, nickel or polished brass finish

with a range of designs to choose from, the traditional towel warmer is ideal for any bathroom setting
available as electric only or dual fuel
available in chrome with white insert in 2 days
finish shown is polished brass and nickel lead times 10 weeks - list price +50%

RAVENNA SR

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna SR Wet
510	955	630	2150	RAVSR4_C	1200.00
Ravenna SR Dual Fuel
510	955	630	2150	RAVDFSR4_C	1350.00
Ravenna SR Sealed Electric
510	955	630	2150	RAVSESR4_C	1450.00

dimensions - ravenna plus	sr4
top projection - wall to front of top rail	150
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	353
pipe centres - floor to centre tappings	100

RAVENNA CR

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna CR Wet
510	955	645	2201	RAVcr4_C	1200.00
695	955	985	3361	RAVcr6_C	1250.00
845	955	1328	4531	RAVcr8_C	1550.00
1000	955	1666	5685	RAVcr10_C	1800.00
Ravenna CR Dual Fuel
510	955	645	2201	RAVDFCR4_C	1350.00
695	955	985	3361	RAVDFCR6_C	1400.00
845	955	1328	4531	RAVDFCR8_C	1650.00
1000	955	1666	5685	RAVDFCR10_C	1900.00
Ravenna CR Sealed Electric
510	955	645	2201	RAVSECR4_C	1450.00
695	955	985	3361	RAVSECR6_C	1500.00
845	955	1328	4531	RAVSECR8_C	1750.00
1000	955	1666	5685	RAVSECR10_C	2000.00

dimensions - ravenna plus	cr4
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	353
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	cr6
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	538
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	cr8
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	690
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	cr10
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	842
pipe centres - floor to centre tappings	100

RAVENNA TCR

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna TCR Wet
510	1500	1120	3822	RAVTCR4_15H_C	1950.00
575	1500	1250	4262	RAVTCR5_15H_C	1950.00
695	955	1025	3497	RAVTCR6_C	1550.00
Ravenna TCR Dual Fuel
510	1500	1120	3822	RAVDFTCR4_15H_C	2050.00
695	955	1025	3497	RAVDFTCR6_C	1700.00
Ravenna TCR Sealed Electric
510	1500	1120	3822	RAVSETCR4_15H_C	2150.00
695	955	1025	3497	RAVSETCR6_C	1800.00

dimensions - ravenna plus	tcr4
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	353
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	tcr6
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	538
pipe centres - floor to centre tappings	100

RAVENNA BJR

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna BJR Wet
510	955	645	2201	RAVBJR4_C	1350.00
695	955	985	3361	RAVBJR6_C	1400.00
Ravenna BJR Dual Fuel
510	955	645	2201	RAVDFBJR4_C	1450.00
695	955	985	3361	RAVDFBJR6_C	1500.00
Ravenna BJR Sealed Electric
510	955	645	2201	RAVSEBJR4_C	1550.00
695	955	985	3361	RAVSEBJR6_C	1600.00

dimensions - ravenna plus	bjr4
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	353
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	bjr6
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	538
pipe centres - floor to centre tappings	100

RAVENNA TBJR

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna TBJR Wet
510	955	670	2286	RAVtBJR4_C	1600.00
510	1500	1120	3822	RAVTBJR4_15H_C	2050.00
695	955	1025	3497	RAVtBJR6_C	1650.00
Ravenna TBJR Dual Fuel
510	955	670	2286	RAVDFtBJR4_C	1700.00
510	1500	1120	3822	RAVDFTBJR4_15H_C	2150.00
695	955	1025	3497	RAVDFtBJR6_C	1750.00
Ravenna TBJR Sealed Electric
510	955	670	2286	RAVSETBJR4_C	1800.00
510	1500	1120	3822	RAVSETBJR4_15H_C	2250.00
695	955	1025	3497	RAVSETBJR6_C	1850.00

dimensions - ravenna plus	tbjr4
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	353
pipe centres - floor to centre tappings	100

dimensions - ravenna plus	tbjr6
top projection - wall to front of top rail	240
bottom projection - wall to outside edge	142
pipe centres - wall to centre tapping	100
pipe centres - internal width - distance between tappings	538
pipe centres - floor to centre tappings	100

ravenna RANGE INFORMATION

STANDARD ROMA INSERTS, WHITE (RAL 9016G)
POWDER COATED INSERTS PLUS £100 PER RAD

POLISHED BRASS AND NICKEL LEAD TIMES 10 WEEKS -
LIST PRICE +50%

FOR DUAL FUEL AND SEALED ELECTRIC ELEMENT IS FITTED ON THE RIGHT HAND SIDE UNLESS SPECIFIED

EN442 OUTPUTS ΔT50C
FACTOR TO ΔT60C = 1.2675

ALL PRICES SUBJECT TO VAT
