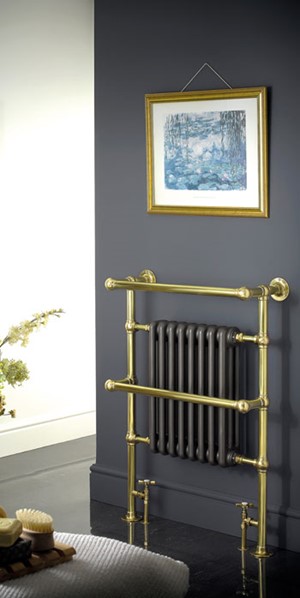

ravenna stock

traditional towel warmer, handmade in chrome, nickel or polished brass finish

with a range of designs to choose from the traditional towel warmer is ideal
for any bathroom setting
available as electric only or dual fuel
chrome available in 2 days
finish shown is polished brass and nickel lead times 10 weeks - list price +50%

RAVENNA CH

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna CH Wet
685	780	325	1108	RAVCH_mini_C	1650.00
695	1030	386	1317	RAVCH_C	1950.00
Ravenna CH Dual Fuel
695	1030	386	1317	RAVDFCH_C	2150.00
Ravenna CH Sealed Electric
695	1030	386	1317	RAVSECH_C	2350.00

dimensions - ravenna CH	ch
top projection - wall to front of top rail bottom projection - wall to outside edge pipe centres - wall to centre tapping pipe centres - internal width - distance between tappings pipe centres - floor to centre tappings	min 260 min 285 min 142 538 100

RAVENNA PIA

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna PIA Wet
485	955	190	648	RAVPIA4_C	1200.00
695	955	231	788	RAVPIA6_C	1250.00
Ravenna PIA Dual Fuel
485	955	190	648	RAVDFPIA4_C	1300.00
695	955	231	788	RAVDFPIA6_C	1350.00
Ravenna PIA Sealed Electric
485	955	190	648	RAVSEPIA4_C	1400.00
695	955	231	788	RAVSEPIA6_C	1450.00

dimensions - ravenna PIA4	pia4
top projection - wall to front of top rail bottom projection - wall to outside edge pipe centres - wall to centre tapping pipe centres - internal width - distance between tappings pipe centres - floor to centre tappings	116 142 100 328 100

dimensions - ravenna PIA6	pia6
top projection - wall to front of top rail bottom projection - wall to outside edge pipe centres - wall to centre tapping pipe centres - internal width - distance between tappings pipe centres - floor to centre tappings	116 142 100 538 100

RAVENNA PTA

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna PTA Wet
695	955	395	1348	RAVPTA6_C	1300.00
Ravenna PTA Dual Fuel
695	955	395	1348	RAVDFPTA6_C	1400.00
Ravenna PTA Sealed Electric
695	955	395	1348	RAVSEPTA6_C	1500.00

dimensions - ravenna pta6	pta6
top projection - wall to front of top rail bottom projection - wall to outside edge pipe centres - wall to centre tapping pipe centres - internal width - distance between tappings pipe centres - floor to centre tappings	116 142 100 538 100

RAVENNA P

width	height	watt	btu	stock code	Price (ex VAT)
Ravenna P Wet
695	695	174	594	RAVP6_C	1200.00
Ravenna P Dual Fuel
695	695	174	594	RAVDFP6_C	1300.00
Ravenna P Sealed Electric
695	695	174	594	RAVSEP6_C	900.00

dimensions - ravenna p6	p6
top projection - wall to front of top rail bottom projection - wall to outside edge pipe centres - wall to centre tapping pipe centres - internal width - distance between tappings pipe centres - floor to centre tappings	116 116 50 610 n/a

ravenna RANGE INFORMATION

POLISHED BRASS & NICKEL LEAD TIMES 10 WEEKS -
LIST PRICE +50%

FOR DUAL FUEL AND SEALED ELECTRIC ELEMENT IS FITTED ON THE RIGHT HAND SIDE UNLESS SPECIFIED

EN442 OUTPUTS ΔT50C
FACTOR TO ΔT60C = 1.2675

ALL PRICES SUBJECT TO VAT

for prices and retailers email: info@apolloradiators.co.uk

RAVENNA RANGE ACCESSORIES
DESCRIPTION	STOCK CODE	PRICE	COMPATIBLE WITH
CHROME ELEMENT COVER (wall)	ELCOVWA	160.00	wall mounted ravenna only
CHROME CABLE COVER (floor)	CACOVFL	120.00	floor mounted ravenna/ravenna plus only
